2N5401
Bipolar Transistors - BJT Bipolar Transistors - BJT BJT, TO-92, 150V, 600mA, PNP
Where to buy online
Other stores - prices, stock and shipping are theirs.
- Identified on 3 board photos in 3 devices
Specifications (BJT)
| Si, Ge | Si |
|---|---|
| NPN, PNP | PNP |
| Max collector power dissipation | 0.31 W |
| Max collector-base voltage |Vcb| | 160 V |
| Max collector-emitter voltage |Vce| | 150 V |
| Max emitter-base voltage |Veb| | 5 V |
| Max collector current |Ic| | 0.6 A |
| Max junction temperature | 135 deg C |
| Transition frequency | 100 MHz |
| Collector capacitance | 6 pF |
| Min forward current transfer ratio (hFE) | 60 |
| Package, e.g. TO220 | TO92 |
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Topp Pro SOHO S12FLX powered speaker | Main board | Q42 |
| Yorkville AUDIOPRO AP3000 amplifier | Main board m1011 | Q38 |
| Yorkville AUDIOPRO AP6040 amplifier | Amp m1150 | Q3 |
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
IR2156S
High-side/low-side gate driver IC for power MOSFETs and IGBTs
On 1 of the same board photo
GENERIC CERAMIC CAPACITOR
Ceramic capacitor, general purpose, various voltage and capacitance ratings available.
On 1 of the same board photo

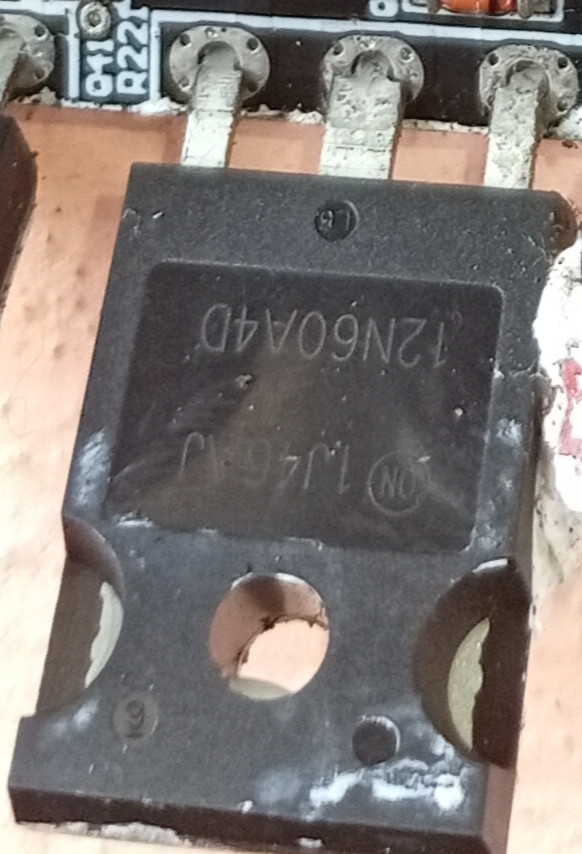

HGTG12N60A4D
