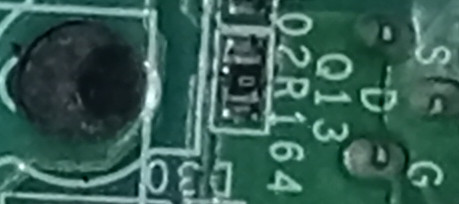

1 / 1Photos show this part as we found it on boards during repairs - not the stock you'll receive.
AOTF20N60
N-channel power MOSFET, 600V 20A, TO-220 package
Other stores - prices, stock and shipping are theirs.
- Identified on 1 board photo in 1 device
- Found faulty in 1 repair
Specifications (MOSFET)
| N or P | N |
|---|---|
| Max power dissipation | 50 W |
| Max drain-source voltage |Vds| | 600 V |
| Max continuous drain current |Id| | 20 A |
| Max junction temperature | 150 deg C |
| Max drain-source on-resistance Rds(on) | 0.37 Ohm |
| Package, e.g. TO220AB | TO2203 |
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Midas M32 mixer | Power board | T3 |
From our repair bench
Failed or replaced in: Midas M32 (1)
Totals across every repair logged on Circuit Fixers.
Similar parts - in stock alternatives
Different package (TO220)
Different package (TO220)
Different package (TO220)
Different package (TO220)
Verified replacements were fitted in place of this part in our repairs, and the repair worked. Tested substitutes have been used in our repairs to replace this part. Related parts are ones this part can replace, not the other way round. The others match on ratings from our parameter tables - check the datasheet before fitting.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
