1 / 3u16 · Power board of a Qsc K12.2 powered speaker
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Qsc K12.2 powered speaker | Power board | U16 |
| Qsc KW181 powered sub | Main board | U16 |
From our repair bench
4
repairs involving this part
2
times replaced
0
found faulty
2
checked and OK
In 2 of 2 repairs where it was replaced, the device was fixed.
Failed or replaced in: Qsc K12.2 (2)
Totals across every repair logged on Circuit Fixers.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
SMD110PL
SMD surface-mount inductor, 110 microhenry, power applications.
On 2 of the same board photos
0.1UF 25V 0603
Ceramic capacitor, 0.1 microfarad, 25 volt, surface mount 0603 package.
On 2 of the same board photos
UCC2893PW
Current-mode PWM controller IC, dual output, 16-pin DIP package.
On 1 of the same board photo

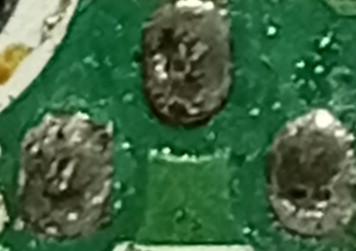

STP11NM60FD
N-channel power MOSFET, 600V 11A, fast diode
On 1 of the same board photo

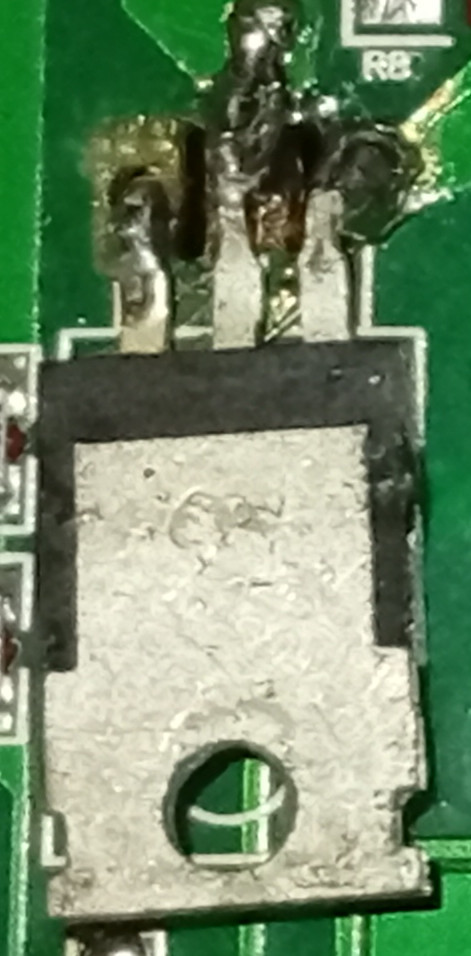

STP45N65M5
N-channel power MOSFET, 650V 35A, TO-220
On 1 of the same board photo
MMBTA56
TRANS PNP 80V 0.5A SOT23-3
On 1 of the same board photo
10 OHM 0402
Thick film resistor, 10 ohms, 0402 surface mount package.
On 1 of the same board photo
10K OHM 1206
On 1 of the same board photo
