1 / 4ic4 · Input board of a Peavey DARK MATTER DM112 powered speaker
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Peavey DARK MATTER DM112 powered speaker | Input board | IC8, IC4 |
| Cerwin-vega P1800SX powered sub | Power board | |
| Dbx DRIVERACK DBXPA+ speaker management | Main board | U11 |
From our repair bench
1
repairs involving this part
0
times replaced
0
found faulty
1
checked and OK
Totals across every repair logged on Circuit Fixers.
Similar parts - in stock alternatives
Verified replacements were fitted in place of this part in our repairs, and the repair worked. Tested substitutes have been used in our repairs to replace this part. Related parts are ones this part can replace, not the other way round. The others match on ratings from our parameter tables - check the datasheet before fitting.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.

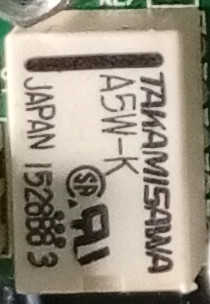

A5W-K
A-5W-K is a low-profile, DIP-10 miniature Fujitsu / Takamisawa Signal Relay designed for low-voltage signal switching
On 1 of the same board photo
GENERIC CERAMIC CAPACITOR
Ceramic capacitor, general purpose, various voltage and capacitance ratings available.
On 1 of the same board photo
GENERIC CHIP RESISTOR
Thick or thin film resistor, standard tolerance, general purpose electronic component.
On 1 of the same board photo

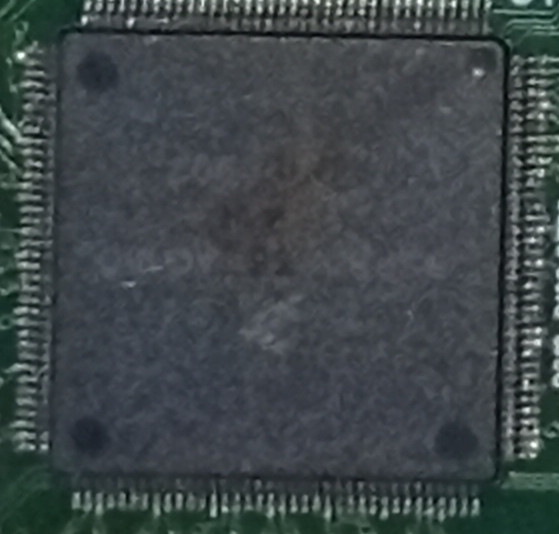

DSPB56367AG150
On 1 of the same board photo
