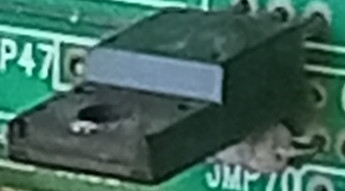

1 / 4Left amp board of a Peavey PV1500 amplifier
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Crest CC5500 amplifier | Main board | |
| Peavey PV1500 amplifier | Right amp board, Left amp board |
From our repair bench
1
repairs involving this part
1
times replaced
0
found faulty
0
checked and OK
In 1 of 1 repairs where it was replaced, the device was fixed.
Failed or replaced in: Crest CC5500 (1)
Totals across every repair logged on Circuit Fixers.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
MMPQ6700
NPN transistor array, quad matched pair, surface mount package.
On 2 of the same board photos
MMBT5401
PNP bipolar junction transistor, small-signal, general purpose.
On 2 of the same board photos
2SA1837
On 2 of the same board photos
2SC4793
On 2 of the same board photos
511 OHM 1206
Thick-film resistor, 511 ohm tolerance, 1206 SMD package.
On 1 of the same board photo
4148 MINIMELF
Fast switching diode, 100V 200mA, surface mount package.
On 1 of the same board photo
1K OHM 1206
Thick-film resistor, 1 kilohm, 1206 surface mount package.
On 1 of the same board photo
PCB TRACE
Printed circuit board conductor line for electrical connections between components.
On 1 of the same board photo
