1 / 4ic10 · Main board of a Cvr CV-218CP6 powered sub
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
3B
- Identified on 7 board photos in 6 devices
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Cvr CV-218CP6 powered sub | Main board | IC12, IC10 |
| Electro-voice ELX112P powered speaker | Power board | T11 |
| Electro-voice ELX115P powered speaker | Power board | T11 |
| Electro-voice ZXA1-SUB powered sub | Power board | T11 |
| Rcf SUB8003-AS powered sub | Main board | T212 |
| Samson EXPEDITION XP1000 powered mixer | Power board | T11 |
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
BC846B
NPN bipolar junction transistor, general-purpose switching and amplification
On 2 of the same board photos
GENERIC CERAMIC CAPACITOR
Ceramic capacitor, general purpose, various voltage and capacitance ratings available.
On 2 of the same board photos
IRS20957S
Single-channel gate driver IC, high-side/low-side MOSFET driver.
On 1 of the same board photo
S21867
On 1 of the same board photo
FMMT718
bjt
On 1 of the same board photo

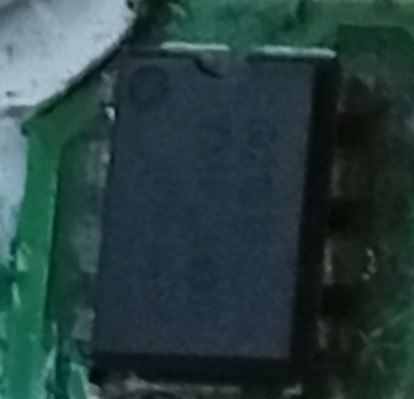

IR2153D
Half-bridge gate driver IC, 600V, with integrated oscillator and dead-time control.
On 1 of the same board photo
FDP20N50
N-channel power MOSFET, 500V 20A, TO-220
On 1 of the same board photo

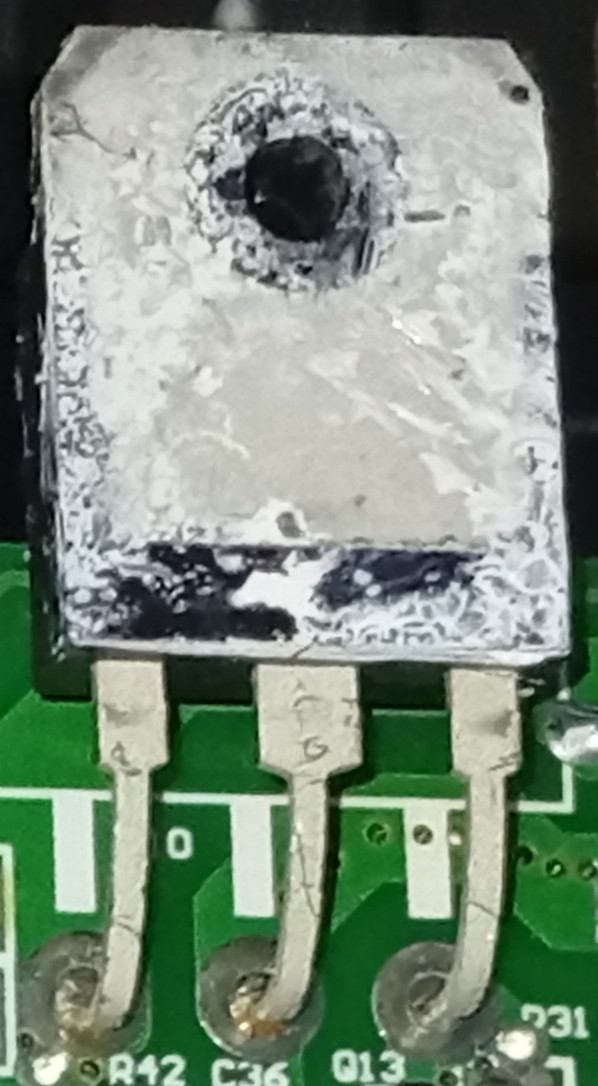

IXTQ52N30P
N-channel power MOSFET, 300V 52A, TO-3P
On 1 of the same board photo
