1 / 6t207 · Main board of a Rcf SUB8003-AS powered sub
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
BF
- Identified on 6 board photos in 1 device
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Rcf SUB8003-AS powered sub | Main board | T21, T202, T107, T207 |
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
IRS20957S
Single-channel gate driver IC, high-side/low-side MOSFET driver.
On 1 of the same board photo

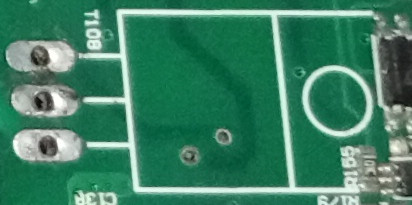

IRFB5615
N-channel power MOSFET, 150V 47A, TO-220 package
On 1 of the same board photo

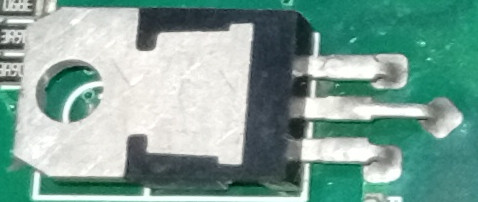

STP26NM60N
N-channel power MOSFET, 600V 26A, TO-220 package
On 1 of the same board photo
S21867
On 1 of the same board photo
FMMT718
bjt
On 1 of the same board photo
BC846B
NPN bipolar junction transistor, general-purpose switching and amplification
On 1 of the same board photo
LD1117AV33
Low-dropout linear voltage regulator, 3.3V 800mA output.
On 1 of the same board photo
78L05A
Positive linear voltage regulator IC, 5V 100mA output.
On 1 of the same board photo
