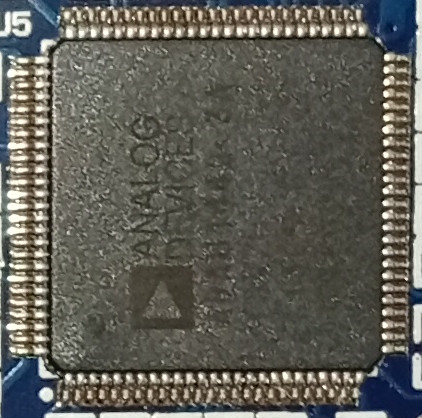

1 / 5Dsp board of a Presonus STUDIOLIVE 16.4.2 mixer
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Presonus STUDIOLIVE 16.4.2 mixer | Dsp board | |
| Das AERO40A line array | Dsp board | U7 |
From our repair bench
1
repairs involving this part
0
times replaced
0
found faulty
1
checked and OK
Totals across every repair logged on Circuit Fixers.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.
MC33079
IC OP AMP 4CH 14-SO
On 2 of the same board photos
10UF 16V SMD
Tantalum or ceramic capacitor, 10 microfarads, 16 volt surface mount package.
On 1 of the same board photo
5V DPAK LDO
Linear voltage regulator, 5V output, DPAK surface-mount package.
On 1 of the same board photo
DIP2 TACTILE
Dual inline package tactile pushbutton switch
On 1 of the same board photo
OPA1632
Dual high-speed operational amplifier, low distortion audio applications.
On 1 of the same board photo
NJT4030P
PNP bipolar transistor, 40V 3A, SOT-223
On 1 of the same board photo
ADAU1442YSVZ-3A
Audio DSP processor with integrated analog I/O interface, 48-pin package.
On 1 of the same board photo
24AA256
256-kilobit serial EEPROM memory, I2C interface
On 1 of the same board photo
