1 / 4ic500 · Power amp board of a Yamaha DXS18XLF powered sub
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Ld Systems ICOA 15 A BT powered speaker | Power amp board | |
| Electro-voice ZLX-12P powered speaker | Power board | |
| Electro-voice ZLX-15BT powered speaker | Power board | |
| Yamaha DXS18XLF powered sub | Power amp board | IC500 |
From our repair bench
1
repairs involving this part
0
times replaced
1
found faulty
0
checked and OK
Failed or replaced in: Electro-voice ZLX-15BT (1)
Totals across every repair logged on Circuit Fixers.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.

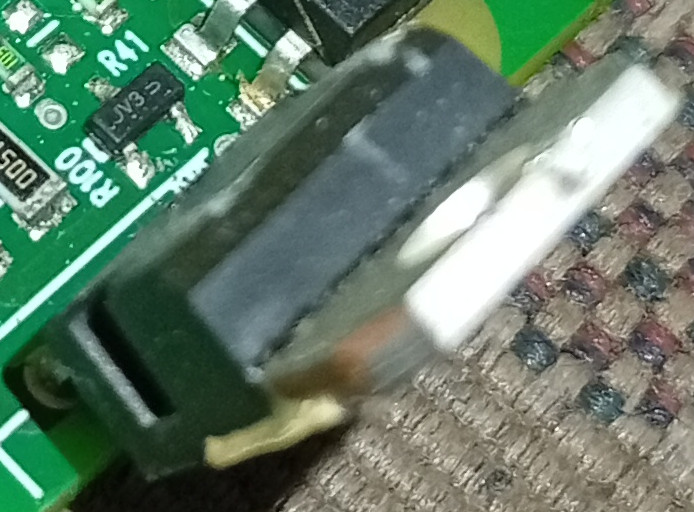

SPP17N80C3
N-channel power MOSFET, 800V 17A, TO-220 package
On 2 of the same board photos
1 OHM 1206
Thick-film chip resistor, 1 ohm, 1206 package, surface mount.
On 1 of the same board photo
100 OHM 1206
Thick-film resistor, 100 ohms, 1206 surface mount package.
On 1 of the same board photo
150 OHM 1206
Thick-film chip resistor, 150 ohms, 1206 surface mount package.
On 1 of the same board photo
BAS316
Switching diode, 100V 250mA, SOD-323
On 1 of the same board photo
BC817-25W
On 1 of the same board photo
BCP56-16
On 1 of the same board photo
MA5332MS
Monolithic IC, likely audio amplifier or signal processing component.
On 1 of the same board photo
