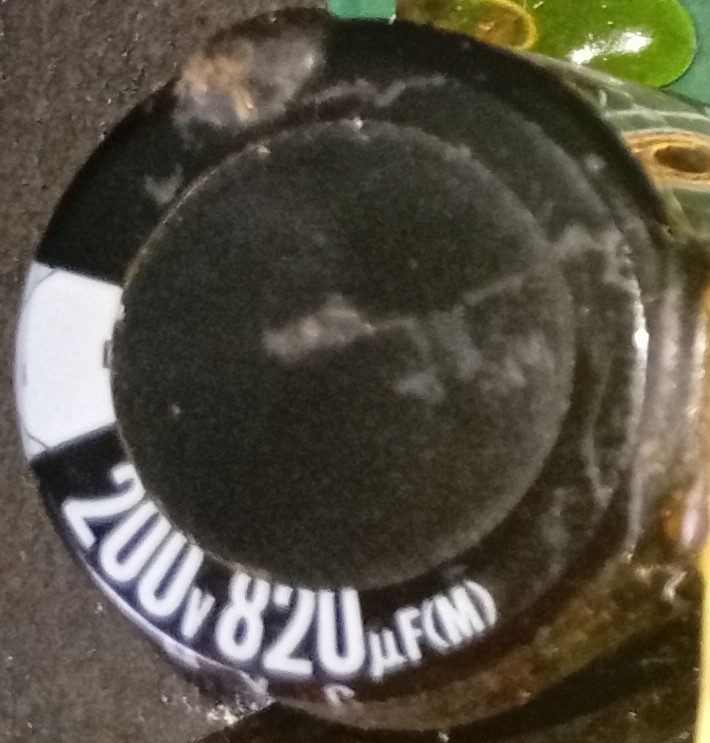

1 / 12d200 · Main board of a Das COMPACT-2 powered speaker
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Electro-voice ELX200-18SP powered sub | Main board | D76, D82, D60, D96, D85, D89, D95, D43, D73, D72, D77 |
| Das COMPACT-2 powered speaker | Low amp, High amp, Main board | D200 |
| Yamaha DXS18XLF powered sub | Power amp board | |
| Das ROAD 15A powered speaker | Low amp | |
| Electro-voice ELX112P powered speaker | Power board | D18, D42, D43, D11 |
| Electro-voice ELX115P powered speaker | Power board | D18, D42, D43, D11 |
| Electro-voice ZXA1-SUB powered sub | Power board | D18, D42, D43, D11 |
| Samson EXPEDITION XP1000 powered mixer | Power board | D18, D42, D43, D11 |
| Das AERO40A line array | Input/mcu board | |
| Rcf SUB8006 powered sub | ||
| Rcf SUB8003-AS powered sub | Main board |
From our repair bench
2
repairs involving this part
1
times replaced
0
found faulty
1
checked and OK
In 0 of 1 repairs where it was replaced, the device was fixed.
Failed or replaced in: Electro-voice ZXA1-SUB (1)
