1 / 12t301 · Ch2 amp power board of a Soundbarrier PCS6000 115vac 60hz amplifier
Photos show this part as we found it on boards during repairs - not the stock you'll receive.
2SC5200
TRANS NPN 230V 17A TO-3PL
Where to buy online
Other stores - prices, stock and shipping are theirs.
- Identified on 14 board photos in 3 devices
- Found faulty in 1 repair
Specifications (BJT)
| Si, Ge | Si |
|---|---|
| NPN, PNP | NPN |
| Max collector power dissipation | 180 W |
| Max collector-base voltage |Vcb| | 250 V |
| Max collector-emitter voltage |Vce| | 230 V |
| Max emitter-base voltage |Veb| | 5 V |
| Max collector current |Ic| | 17 A |
| Transition frequency | 58 MHz |
| Min forward current transfer ratio (hFE) | 70 |
| Package, e.g. TO220 | TO264 |
Found in these devices
Where we've identified this part on boards we've worked on.
| Device | Board | Position on board |
|---|---|---|
| Staner HD1.6 amplifier | Right amp | |
| Soundbarrier PCS6000 115vac 60hz amplifier | Ch2 amp power board | T307, T305, T303, T326, T329, T301 |
| Crest CC5500 amplifier | Main board |
From our repair bench
2
repairs involving this part
0
times replaced
1
found faulty
1
checked and OK
Failed or replaced in: Soundbarrier PCS6000 (1)
Totals across every repair logged on Circuit Fixers.
Often found with
Parts we stock that sit on the same boards - handy when the fault is in that area.

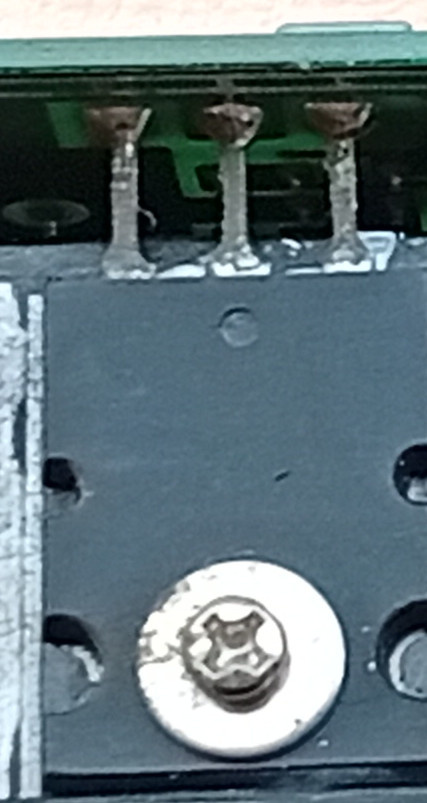

2SA1943
On 2 of the same board photos
10 OHM 0.25W
Resistor, 10 ohm, 0.25 watt, carbon film or composition type.
On 1 of the same board photo
MMPQ6700
NPN transistor array, quad matched pair, surface mount package.
On 1 of the same board photo
MMBT5401
PNP bipolar junction transistor, small-signal, general purpose.
On 1 of the same board photo
NJM13700M
IC OP AMP 2CH 16-DMP
On 1 of the same board photo
10UF 35V 1210
On 1 of the same board photo
0.33 OHM 5W AXIAL 4.32X25.4MM
crest and peavey amp resistors
On 1 of the same board photo
